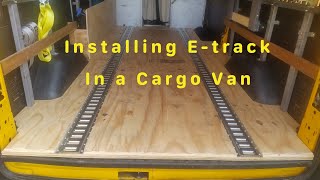

So, after searching unsuccessfully for weeks trying to find a “how to install e-tracks into a cargo van” video I decided to make my own for you guys out there.

With some time and a little bit of skill anyone can do this. It took about 6-8 hours because I was working on the van before and after work.

Be safe when operating tools and equipment. I’m not responsible for any damages or injuries. Have fun!

Things needed:
1. Goggles https://amzn.to/3aBem2l
2. Gloves https://amzn.to/3buPnip
3. Ear plugs https://amzn.to/2S2P2f8
4. Two (2) 10ft E-tracks or the amount you need https://amzn.to/2XZ4LQe
5. Utility knife https://amzn.to/3eHANWL
6. Torx bits to remove plastic covers at the back and side doors. https://amzn.to/3bqDLNf
7. Drill https://amzn.to/3bqDLNf https://amzn.to/3cx6xvQ
8. Drill bit set (1/16”, 5/64”, 1/2”) https://amzn.to/3avIb4j
9. Chisel ( to notch out the wood so the wood can lay flat on the tracks) https://amzn.to/3atMRHU
10. Hammer https://amzn.to/3au4vLz
11. Socket adapter for impact driver https://amzn.to/3cGcZk2
12. Circular saw https://amzn.to/34VS3Tu
13. Jig saw (optional) https://amzn.to/2Vu4GlF
14. Measuring tape https://amzn.to/2Vyjmk1
15. Vacuum cleaner (optional for cleanup) https://amzn.to/3bwi3Y7
16. Knee pads (optional)
17. Nose masks
18. Router (optional) ( to notch out the wood so the wood can lay flat on the tracks)
19. Pencil/Marker/Pen to make marks

WALMART (non affiliate link)
20. Krylon Rust protector https://bit.ly/2Kt4xbO

HOME DEPOT (non affiliate link)
21. Two 3/4” plywood 4x8 https://thd.co/3ay7IcS
22. 1.5” #14 Teks Self tapping screws (2 packs of 50) https://thd.co/3cDv16E
23. Straight edge for cutting wood straight. I used a 1x3 piece of wood. https://thd.co/2SfMNVZ

HARBOR FREIGHT  (non affiliate link)
24. Impact Driver https://bit.ly/351w3a6
25. Ratchet and socket set from Harbor Freight(Sockets used 3/8” and 13mm) - https://bit.ly/3eHZRN7 has torx bits, hammer, etc.

Removing the floor mat

1. Remove all items from cargo area.
2. Cut out any areas with a razor that will prevent the mat from being removed.
3. Use torx tool to remove plastic cover at back and side door.
4. Take the mat out.
5. Remove the insulation a bottom of mat. (optional).
6. Set the mat on the side if you want to place it back int the van.
7. (Optional) I cut the mat into 3 pieces and place the mat on the 2 sides and center of the track after the track was installed.

Installing E-tracks to the floor

1. Figure out where you want your tracks. I placed mine in the center where I had 2 joints (the rising parts) showing on the floor.
2. Use the marker and mark out where you want to put the screws. I’ve placed 4 screws every 2-2.5 feet.
3. Use the 1/16” drill bit to carefully drill pilot holes for the 1.5” #14 self tapping screws.
4. Use your impact drill or drill with 3/8” socket and screw the screws into the predrilled holes. I suggest measure the distance from a set location so you will install the track as straight as possible.
5. Vacuum metal shavings to prevent cutting yourself.
6. Repeat for the other side.

Installing 3/4” plywood

(I used a full 8 feet length at the back and the remaining 2 feet at the front. YOUR MEASUREMENTS MAY BE DIFFERENT)

1. Figure out if you want the wood the same shape as the floor (jig saw needed) or just make straight cuts like I did.
2. Make your measurements. NOTE: Measure twice cut once!
3. Reinstall the mat if you want to.
4. Use the circular saw with a straight edge to cut the plywood.
5. Dry fit the wood and make sure everything looks good.
6. Mark screws location on the side of the wood.
7. Notch out the wood to lay flat on the track.
8. Use the 5/64” drill bit to drill a pilot hole screw the wood into the floor.
9. Use the 1/2” drill bit after 5/64” to create a counter sink hole. DRILL SLOWLY TO PREVENT DRILLING A LARGE HOLE INTO THE WOOD AND FLOOR.
10. Screw the 1.5” #14 self tapping screws into the plywood to the floor.

Protecting the holes from rust

1. Go underneath the van and spray the holes created with the rust protector (I used) or rubberized paint.
NOTE: Do so safely on a flat solid surface. Make sure your key is out of the ignition and in your pocket, hand brakes on, the car is in park and chock the wheels.

Done!
